What raw materials can be processed by the QFT4-15 block machine?

The QFT4-15 is designed with wide raw material adaptability. In addition to conventional sand, stone, and cement, it can efficiently utilize industrial solid waste including fly ash, slag, coal gangue, steel slag, and construction waste. The frequency-controlled vibration system with adjustable amplitude ensures excellent block density regardless of material composition.

What is the daily production capacity of QFT4-15?

Based on an 8-hour working shift, the QFT4-15 can produce 5,760 – 7,200 hollow blocks (390×190×90mm), 44,800 – 53,760 solid bricks (240×115×53mm), or 24,000 – 32,000 paving stones (198×98×60mm). Actual output depends on material mix and cycle time setting (13–20 seconds).

Can the voltage and frequency be customized for different countries?

Yes, absolutely. Silver Horse supports full voltage customization to meet local standards, including 220V, 380V, 415V, and 440V with 50Hz or 60Hz. All electrical components are sourced from world-renowned brands like Siemens and Schneider to ensure stable operation under different power grid conditions.

What is the delivery time and shipping terms for QFT4-15?

Production lead time is 20–25 working days after deposit confirmation. We ship via global top-tier freight forwarders under FOB, CIF, or CFR terms (Shanghai/Qingdao port). Professional wooden packaging (fumigation-free) is included to ensure safe delivery.

What spare parts should I order together with the main machine?

We recommend ordering a spare parts kit including hydraulic seals and O-rings, vibration motor bearing set, control panel relays and fuses, Hardox wear plates for the mould, and additional pallets (1000×620×40mm). All spare parts are kept in stock for worldwide quick shipment.

What is the difference between QFT4-15 and QFT6-16?

The main difference lies in capacity and pallet size. The QFT4-15 uses a 1000×620mm pallet, ideal for small to medium production, while the QFT6-16 uses a 1400×750mm pallet offering 30-40% higher output for large-scale commercial production. Both models share the same reliable vibration and hydraulic technology.

QFT4-15砌块机

银马砌块机是银马公司畅销、高性价比的产品，是行业知名品牌。 QFT4-15砌块机设计美观大方，经济实用，运行稳定平稳。

发送询问

产品描述

银马QFT4-15砌块机在设计时充分考虑了原材料的广泛适用性。除常规砂石外，还可有效利用粉煤灰、矿渣等材料生产各种砖，包括空心砖、实心砖、铺路石、草坪砖等。

主要特点

银马砌块机年产空心砌块5万立方米，实心砖3000万块。 QFT4-15砌块机采用变频振动系统，振幅可调，兼容多种材料。配备智能电气控制系统，操作简单，提供手动、联锁、自动三种制砖模式。

砌块机展示

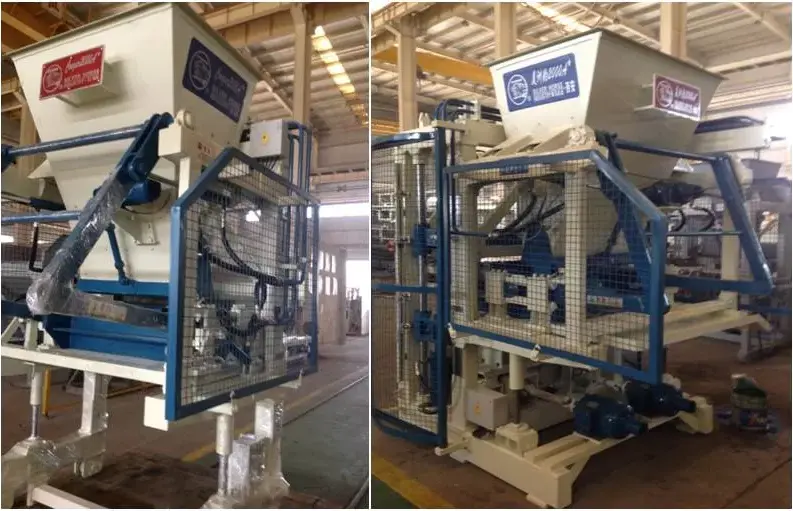

QFT4-15 concrete block machine producing hollow blocks in factory

技术参数

类型	QFT4-15
成型周期(S)	13～20（秒）
托盘尺寸	1000×620×40（毫米）
振动频率（HZ）	0～65HZ 电脑控制全程可调频率及范围
振动形式	变频调幅
使用扩展	空心块、铺路石
主机总功率	27千瓦
生产线总功率	48千瓦
外形尺寸	7740×2000×2860（毫米）

产能一览表

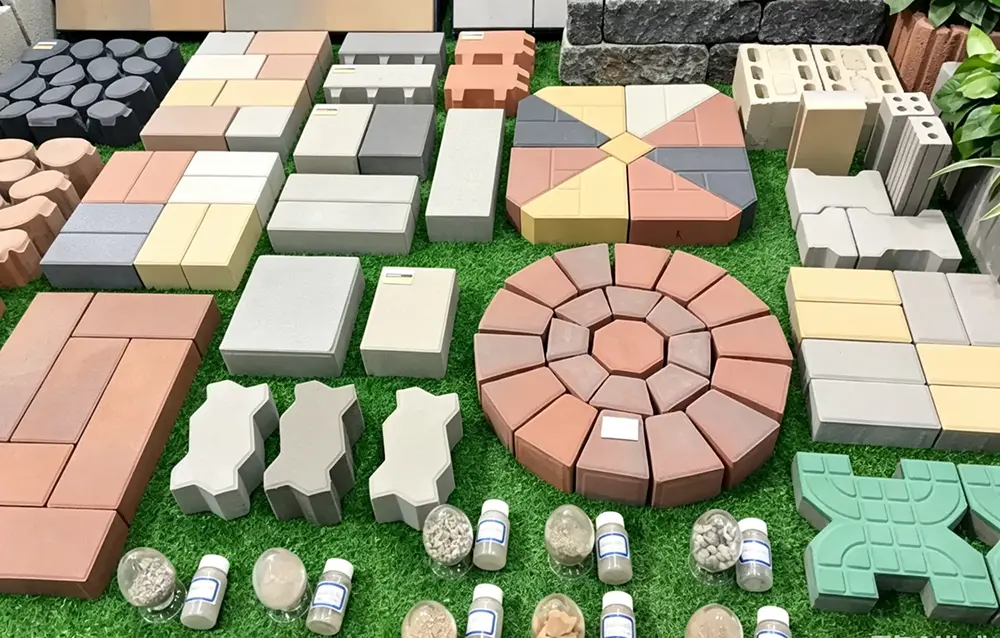

利用工业固废（如粉煤灰、矿渣、煤矸石、钢渣等）和建筑固废生产生态透水砖、生态护坡砖、市政砖、草坪砌块、墙砖等产品。

砌块成型机产能一览表
模型	规格	成型块	产量/小时
铺路石	198×98×60/80（mm）	20块/板	3000~4000砖/小时
草坪块	488×298×80/100（mm）	2块砖/板	320~400砖/小时
实心砖	240×115×53（mm）	28块/板	5600~6720片/小时
空心块	390×190×90（mm）	4块砖/板	720~900块/小时

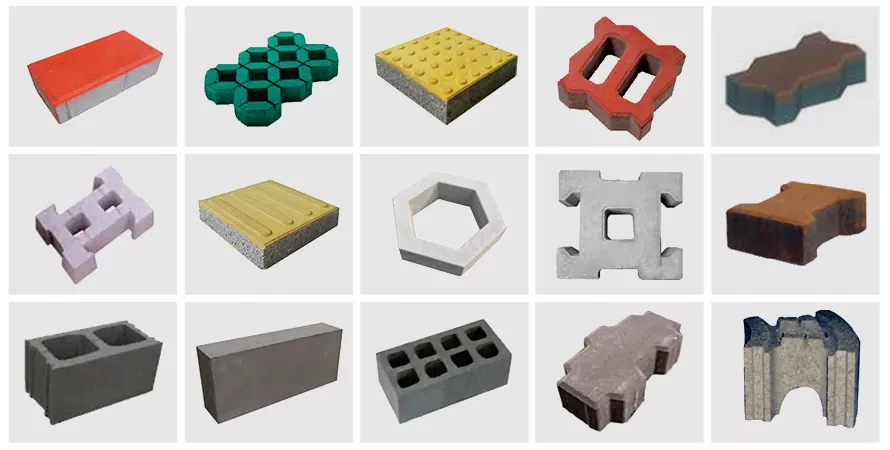

注：该设备可生产各种不同的砌块，只需更换模具即可。

我们的QFT4-15采用工作台振动+液压机双成型系统。与纯电机机器不同，这种混合设计即使在粉煤灰含量为 30% 的情况下也能确保更高的砌块密度（高达 15MPa），从而为您节省高达 15% 的水泥成本。

产品展示

Technical diagram of QFT4-15 hydraulic vibration system

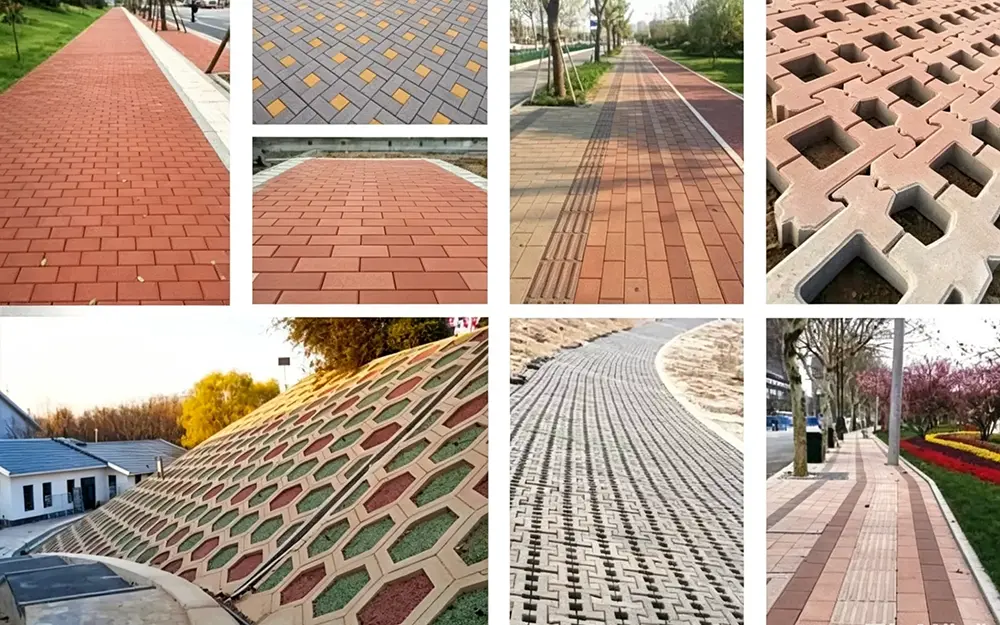

产品应用

❓ 关于QFT4-15砌块机的常见问题
